FlexNoC Interconnect IP

Physically aware network-on-chip IP designed to speed development.

FlexNoC Interconnect IP

Overview

Enabling SoC developers to create physically valid NoCs faster

FlexNoC® Interconnect IP is used by the world’s top semiconductor design teams as the backbone for on-chip communications in chips that target the fastest growing markets. It enables efficient data movement and provides flexibility in complex designs. FlexNoC benefits include:

Accelerate development cycles
Increase system performance
Reduce latency
Improve quality of results
Increase power efficiency

Using both FlexNoC and Ncore IP in an ASIC design also delivers unparalleled performance optimization, scalability, and system integration. This in turn supports market differentiation and helps accelerate time to market.

Advantages

A comprehensive NoC IP product for creating
the world’s best SoCs

Flexible topologies

FlexNoC is generated from simple elementary components, combined using a powerful set of underlying algorithms and an intuitive GUI, making it possible to build any topology.

Small to large SoCs

FlexNoC easily supports long cross-chip paths by leveraging source-synchronous communications and virtual channels.

Huge bandwidth

FlexNoC drives performant on-chip data flow and access to off-chip memory by enabling multichannel HBMx memory and high-bandwidth data paths.

FlexNoC 5 key features

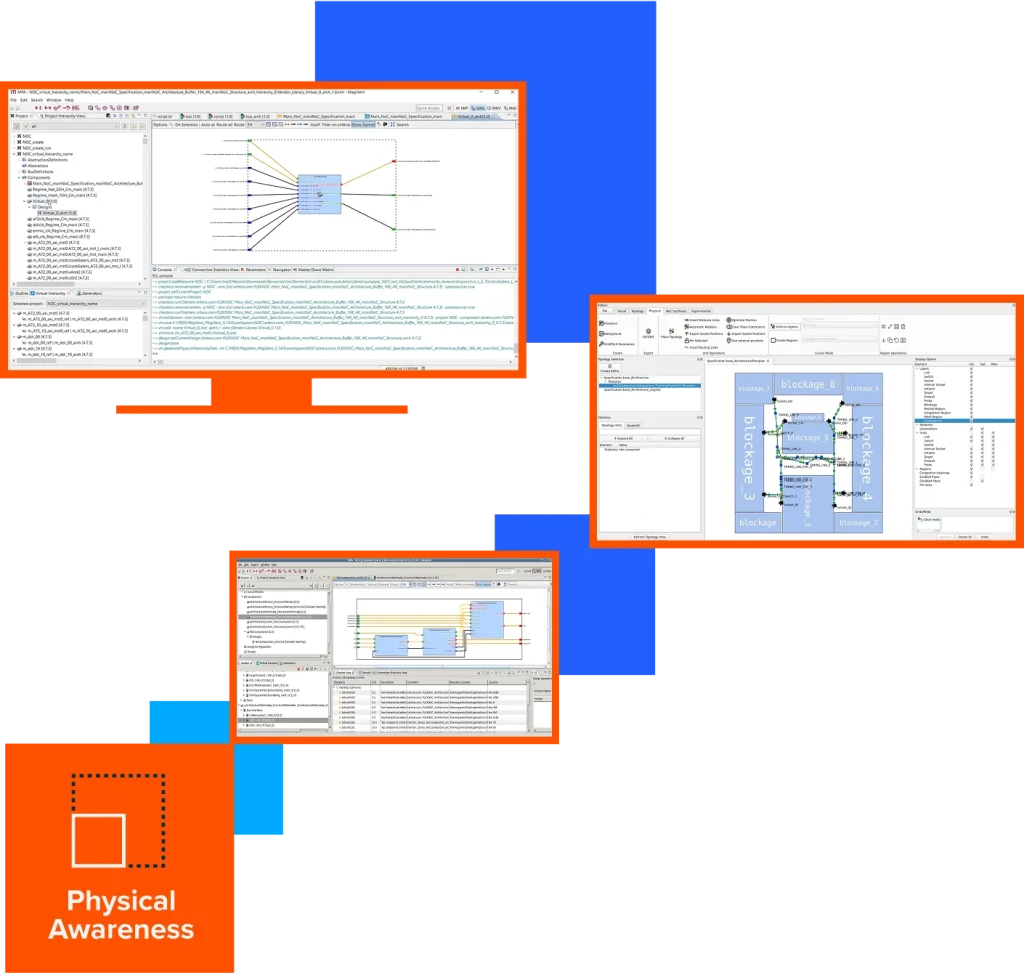

Auto-timing closure assist
NIU (Network Interface Unit) tiling to organize NIUs into modular, repeatable blocks, improving scalability, efficiency, and reliability
Topology visualized directly on floorplan
Multi-clock/power/voltage domains and power management with unit-level clock gating
Multi-protocol support including AMBA 5 with QoS bandwidth regulator and limiter enumerations
General optimizations for lower area e.g. up to 30% for some NoC elements depending on configuration
Native and user-defined firewall security
Import and export to Magillem tools
AMBA 5 support of DVM 8.1 (Distributed Virtual Memory)
On-chip performance monitoring and debug
Debug and trace with ATB 128b and timestamps

Show More Features

Explore additional FlexNoC features, download the datasheet.

Efficient data movement through the SoC

Integration with Arteris CodaCache® last-level cache raises the bar on innovation:

Ideal for NoC applications with data re-use
Improves overall SoC latency and power

Efficient data movement through the SoC

NoC integration automated flow

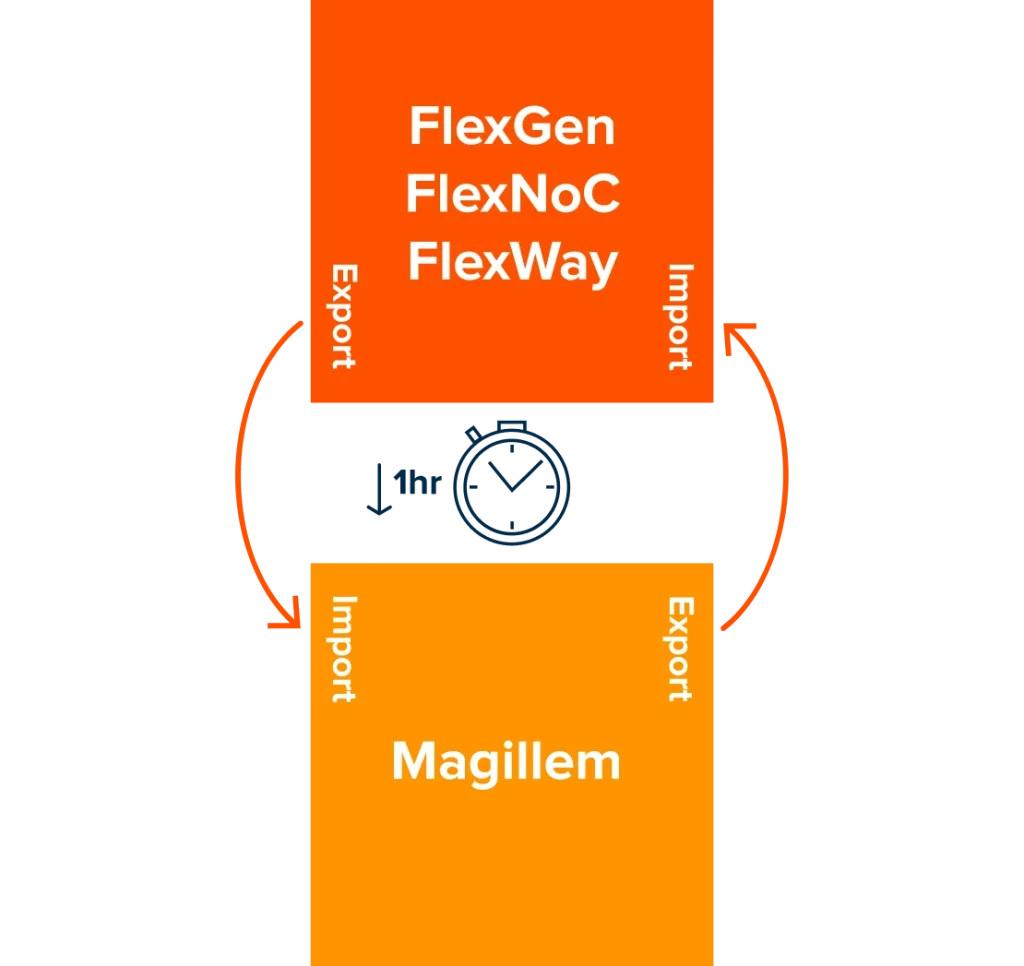

Automated flow to leverage SoC connectivity information using Arteris Magillem:

Improved productivity with reduced process
Better quality with early error detections thanks to checkers

NoC integration automated flow

FlexNoC product benefits

Higher frequencies, lower latencies

Use built-in NoC performance analysis exploration tools.

Reduced power consumption

Advanced power management through clock gating, DVFS, and GALS.

Smaller die area

Fewer wires using optimal NoC transport layer.

Speedy timing closure

Early physical awareness for faster convergence without redesigns.

Easy configuration

Use the intuitive FlexNoC UI.

Automated verification

Save hundreds of hours of work compared to manual verification test benches.

Shorter schedules

Speed time to market with fewer iteration loops.

Higher profit

Reduce time to market with FlexNoC design efficiency savings.

Product comparison table

Category	Features	FlexNoC	FlexGen
Target Audience and Scale	Smaller-scale MCU SoCs
	Small-medium scale SoCs
	Large scale SoCs
Instances Per Design	Single NoC instance
Instances Per Design	Multiple NoC instances
Network Interface Units (NIUs) per die¹	Up to 50 NIUs
	Up to 200 NIUs
	Up to 1000 NIUs	with XL option	with XL option
	Up to 2000 NIUs		with 2XL option
Compatibility	AXI, AHB, APB, OCP, PIF, AMBA5
Compatibility	ACE-Lite
Smart NoC Automation	Topology generation with minimum wire length
	Scripting-driven regular topology creation
	Incremental design capability
Physical Awareness	Automatic timing closure assistance
Physical Awareness	Floorplan visualization
Advanced Scalability	Enhanced Tiling^2,3	with XL options	with XL/2XL options
	Mesh topology editor	with XL options	with XL/2XL options
	Write broadcast stations	with XL options	with XL/2XL options
	Virtual channel links	with XL options	with XL/2XL options
	Source synchronous asynchronous bridges	with XL options	with XL/2XL options
	Up to 1024 bits data bus	with XL option	with XL option
	Up to 2048 bits data bus		with 2XL option
	512 pending transaction support	with XL option	with XL option
	1024 pending transaction support		with 2XL option
Optimizations	Optimization for performance, area and wire length
	Advanced Quality of Service (QoS)
	Power management and security
	Address and data protection schemes
	Advanced in-circuit debug features
	Multi-cycle SRAM support
	Floorplan visualization
Add-on Options	Memory Re-order Buffer option
	Reliability option
	Safety (up to ISO 26262 ASIL D) option
	Advanced Scalability (XL/2XL) options
Markets	Automotive, Aerospace & Defence, Communications, Consumer Electronics, Enterprise Computing and Industrial Markets

¹ NIU limits apply per individual monolithic die or chiplet design.

² FlexGen is advised for customers seeking to create a mesh topology using tiling.

³ Customers seeking to license multiple optional features should disclose its requirements to Arteris support engineers. Given the increasing complexity of designs, customers are advised to communicate their specific design needs to Arteris support engineers.

FlexNoC fully integrated product options

Option

Large Systems: XL and 2XL

Enhanced tiling
Mesh topology editor
Up to 2048 bits data bus
Virtual channel links
Write broadcast stations

Learn more about product

Option

Resilience: Safety

ISO 26262 Functional Safety (FuSa)
Multi-ASIL support
Interconnect-wide ECC support

Learn more about product

Option

Performance: Reorder Buffer

Single and multichannel reorder buffers (ROB):

Avoid ordering rule blocks
Avoid response serialization bottlenecks
Allow concurrent memory channel reads

Learn more about product

Featured Solution

Multi-die solution accelerates AI-driven silicon innovation

Foundational technology for rapid chiplet-based design.

Flexible design scalability
Differentiated AI performance
Aligned with evolving industry standards

Built on silicon-proven NoC IP and Magillem® automation to scale modular architectures, the Arteris multi-die solution helps simplify multi-die projects, and compress development schedules.
